JUDGE DREDD

High-poly character. Sculpted in Mudbox. Base meshes created in Maya and Blender. Retopology where necessary in Topogun. UVs created in Blender. Normal, bump, and cavity maps generated in Maya, xNormal and Mudbox and transferred to a low-poly mesh for texture painting in Mudbox

High poly total: 38,273,704 quads. Low poly total: 388,168 quads. (A thousandfold reduction in size.)

Based on the 2000AD character Judge Dredd created by John Wagner and Carlos Ezquerra.

Turntable Animation

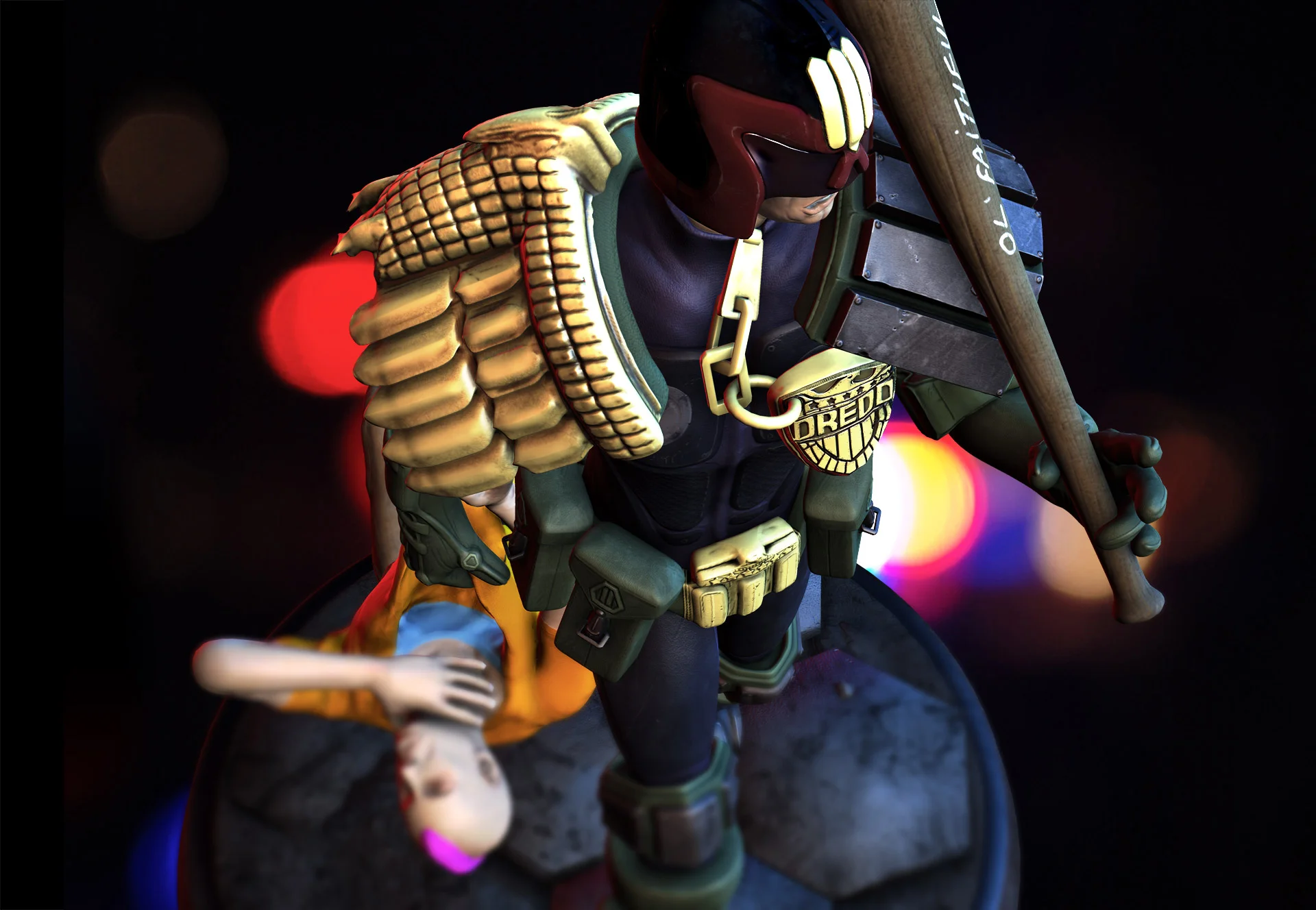

Rendered in Blender Cycles using Physically Based Rendering Materials and image based lighting.

Choose 720p HD or 1080p HD for best video quality.

Sketchfab Model

Manipulate the model in 3D below using your mouse with Sketchfab. No plug-in required. Sometimes needs WebGL enabled.

Mega City Takedown / Judge Dredd by paulchambers3d on Sketchfab

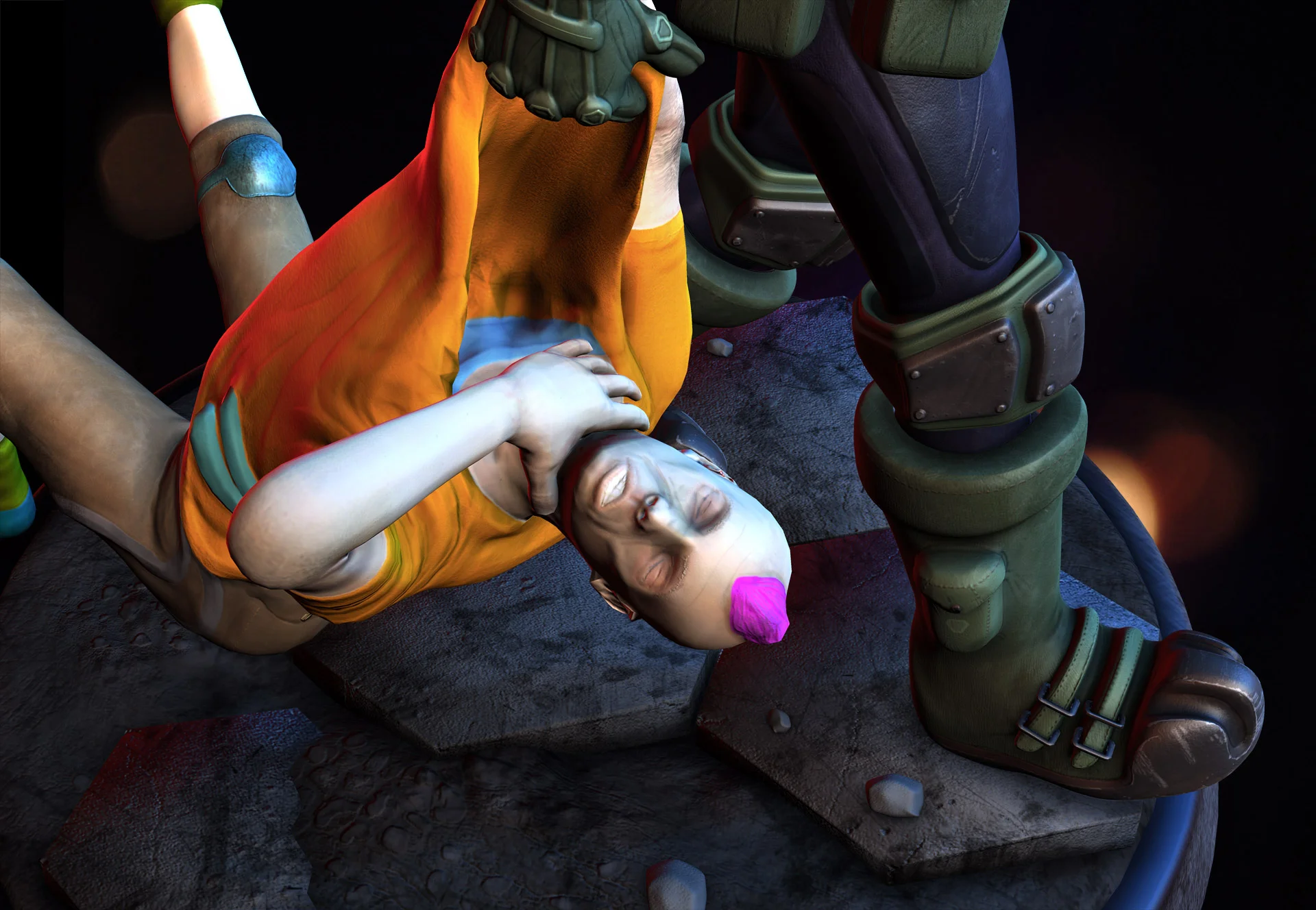

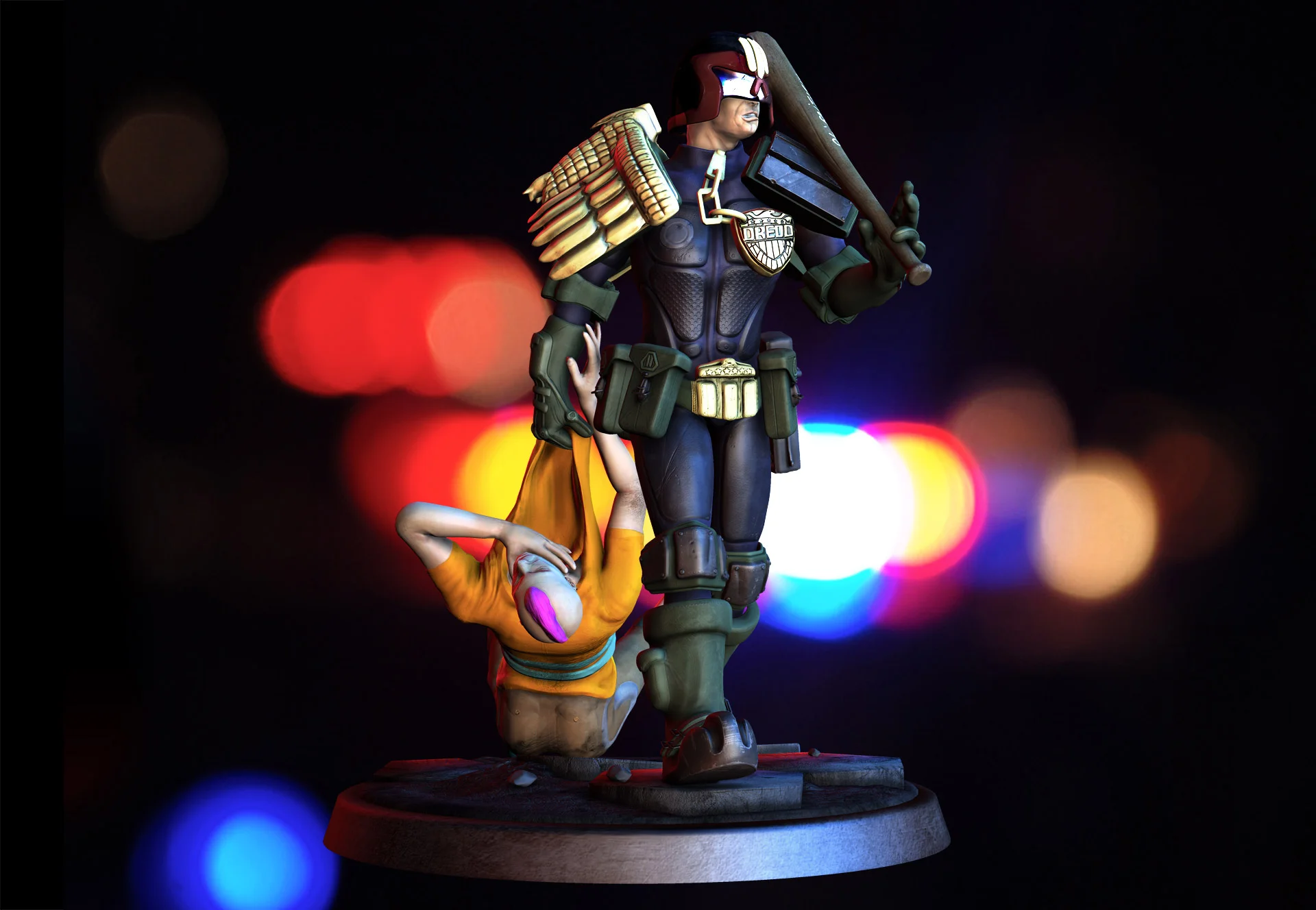

Mudbox Still Renders

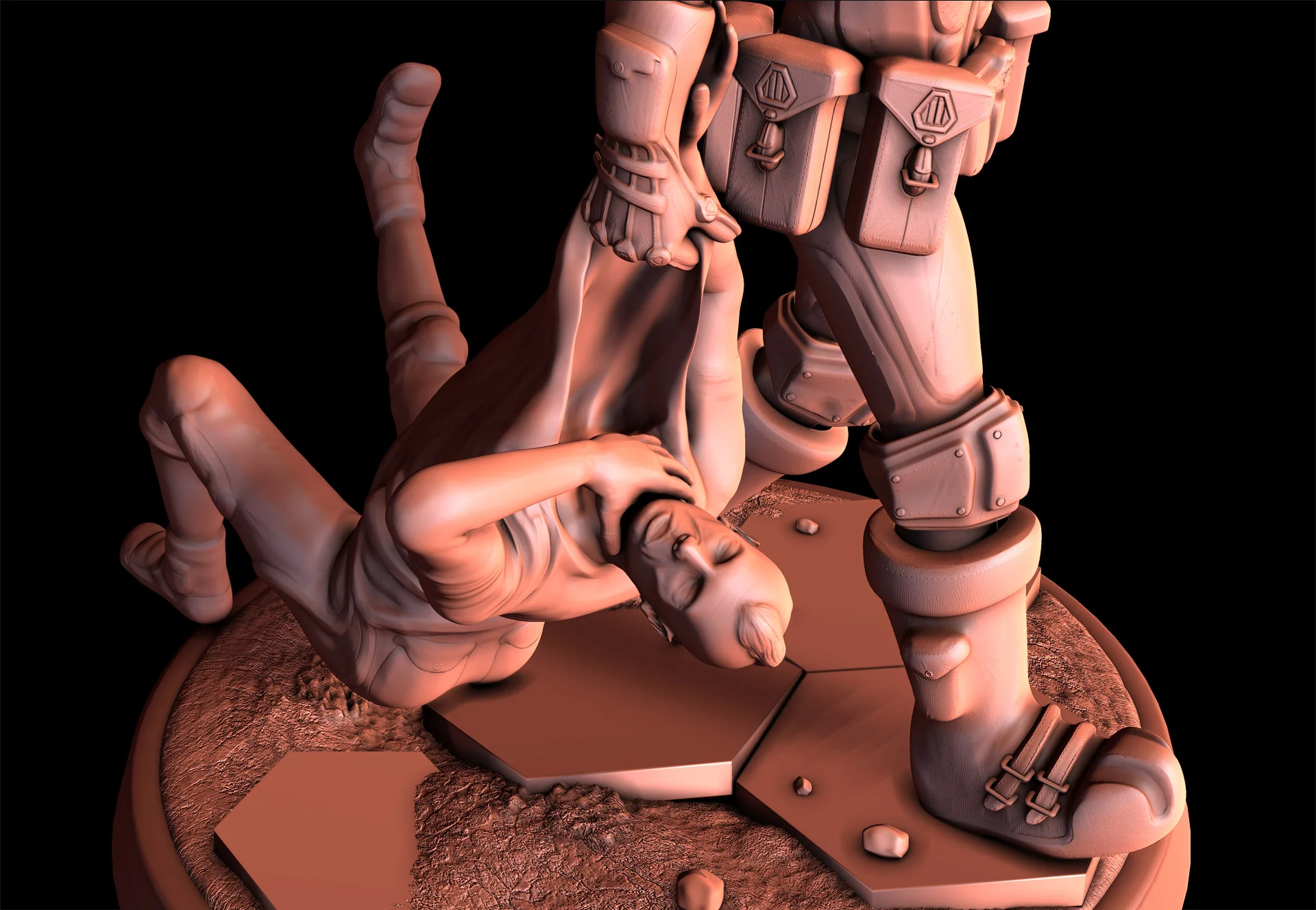

Renders direct from Mudbox lit using image based lighting.

PROJECT BREAKDOWN

Maya Base Meshes

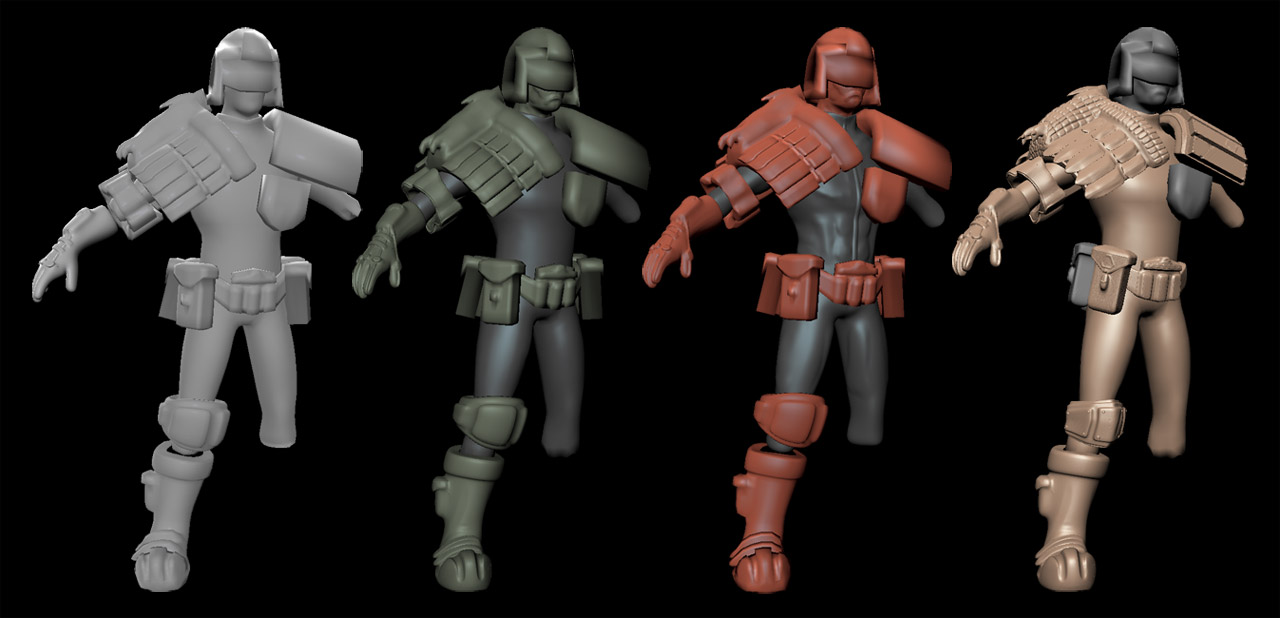

Mudbox Sculpting in Progress

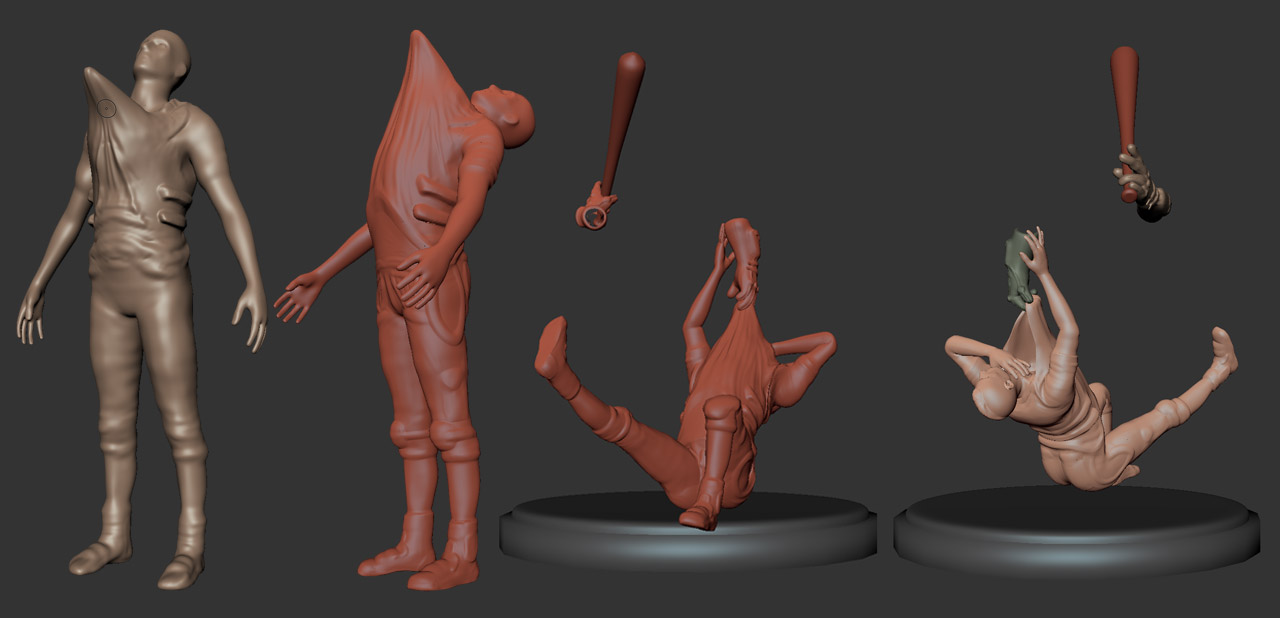

For part of the sculpting process the two characters were sculpted separately to manage polygon counts and memory usage.

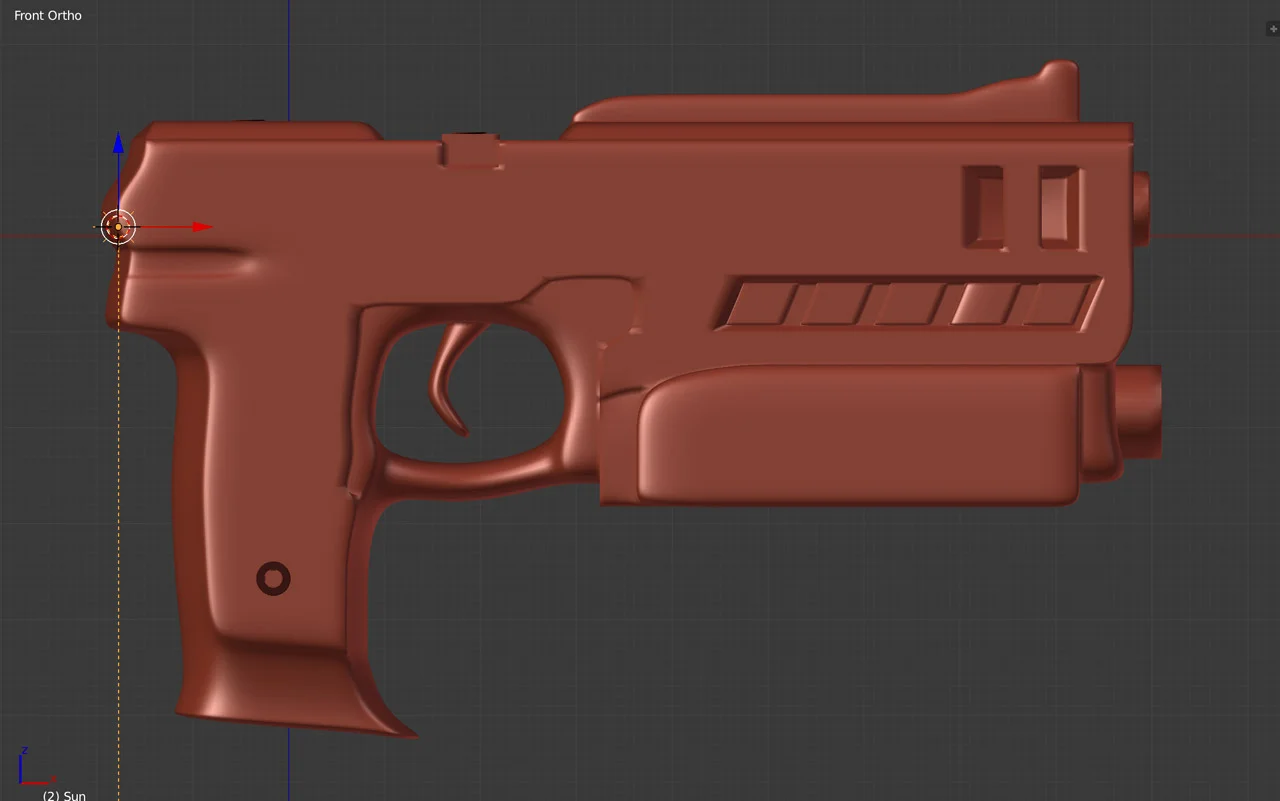

Some hard-surface props like Judge Dredd's "Lawgiver" pistol were modeled in Blender. — Some hard-surface props like Judge Dredd's "Lawgiver" pistol were modeled in Blender.

Pose Adjustment and Paint Planning

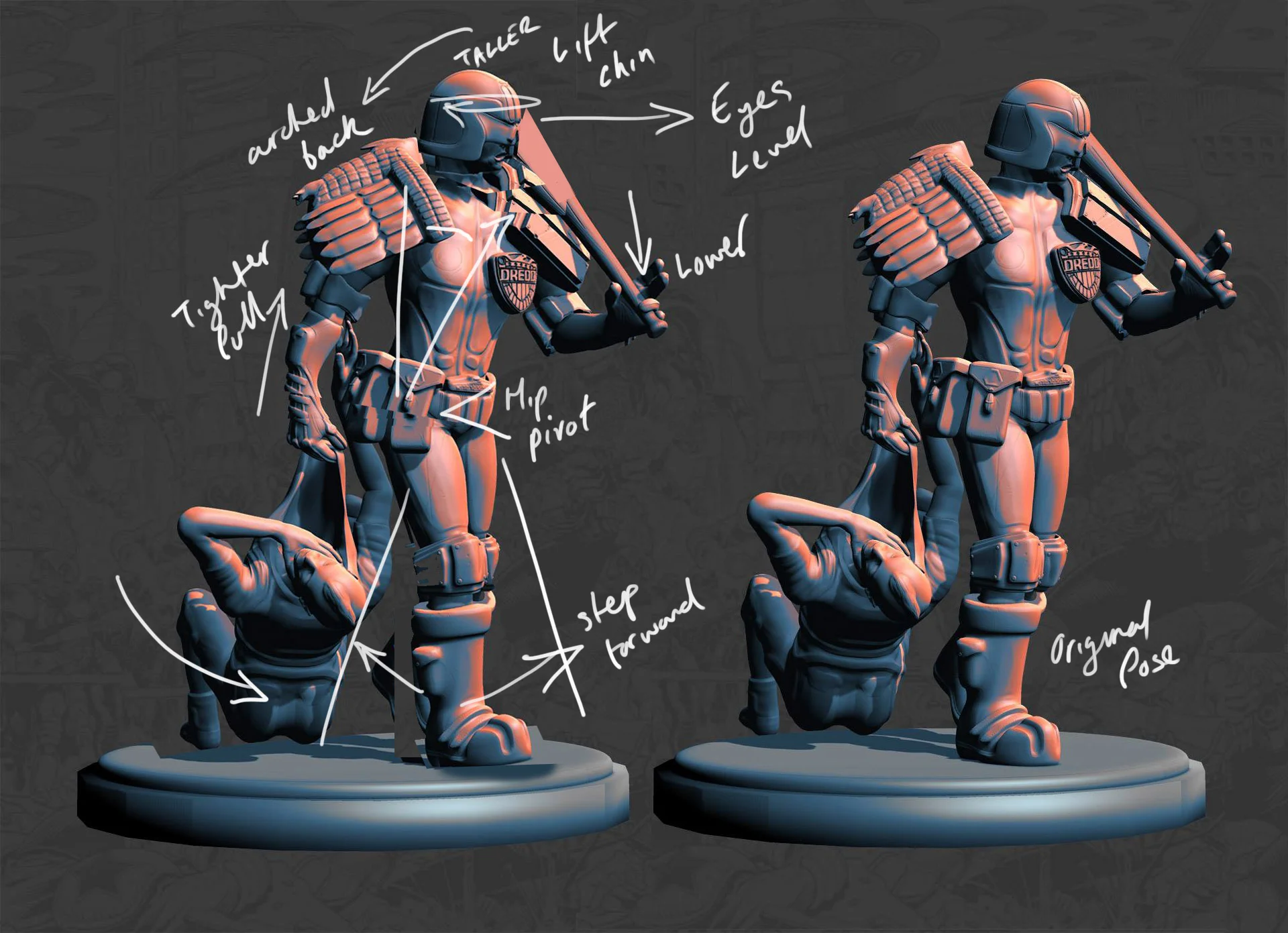

Close to sculpting completion I output some renders to share with the CGI community. I used this opportunity to strengthen the pose. In the above image I quickly hacked pieces on the left in Photoshop to aim for a more determined look with Dredd's h… — Close to sculpting completion I output some renders to share with the CGI community. I used this opportunity to strengthen the pose. In the above image I quickly hacked pieces on the left in Photoshop to aim for a more determined look with Dredd's head lifted, a mid-stride pose with forward momentum and a tighter pull on the thug.

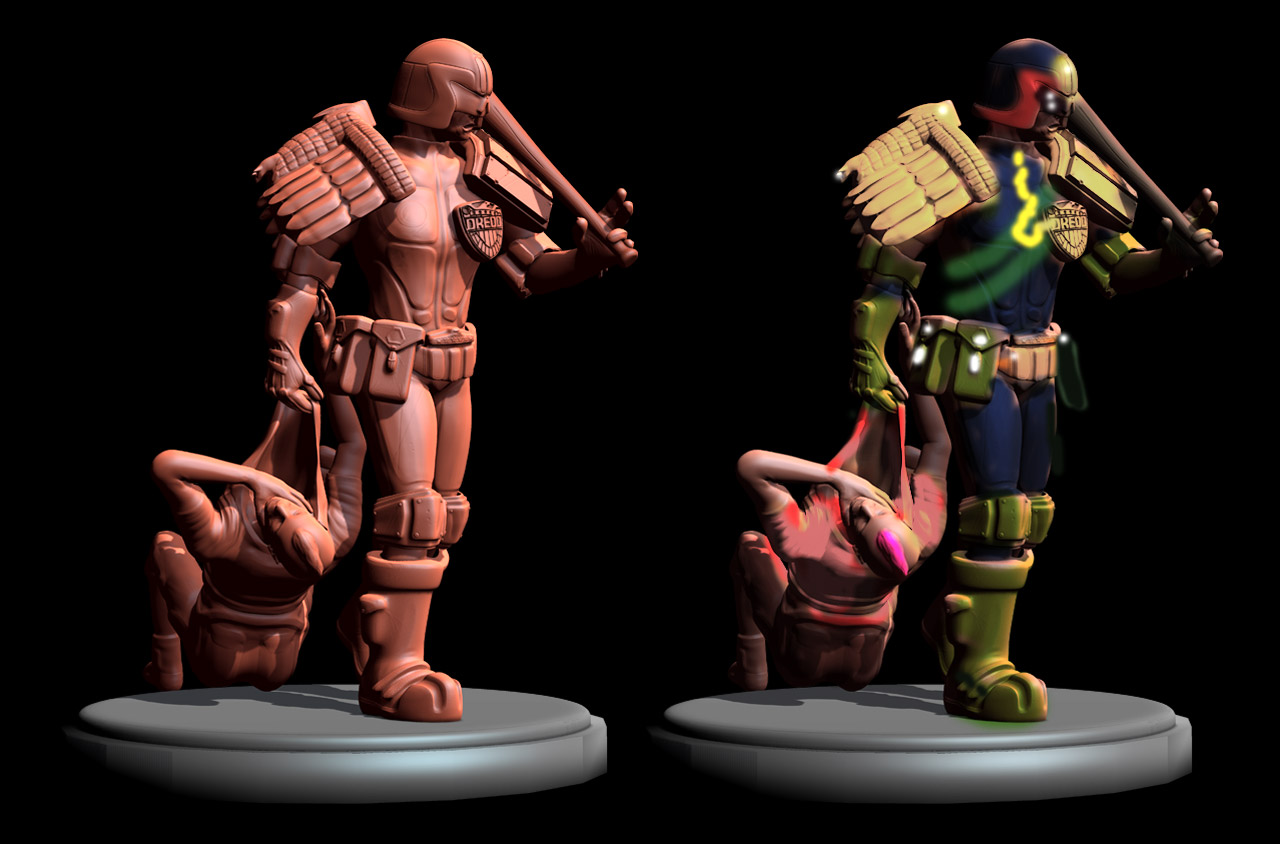

I also used this opportunity to try and very quick down-and-dirty paint over in Photoshop as a color guide for the final model. Note how the pose is different from the final model.

Completed High Poly Sculpt

Bump mapping was added to create the finest detail without increasing the polygon count.

Retopology in Topogun

Partial retopology occurred during the sculpting process for better sculpt quality and again to create efficient low polygon target meshes. — Partial retopology occurred during the sculpting process for better sculpt quality and again to create efficient low polygon target meshes.

UVs created on the low poly target meshes in Blender.

Baking, and Map Transfers to a Low Poly Model

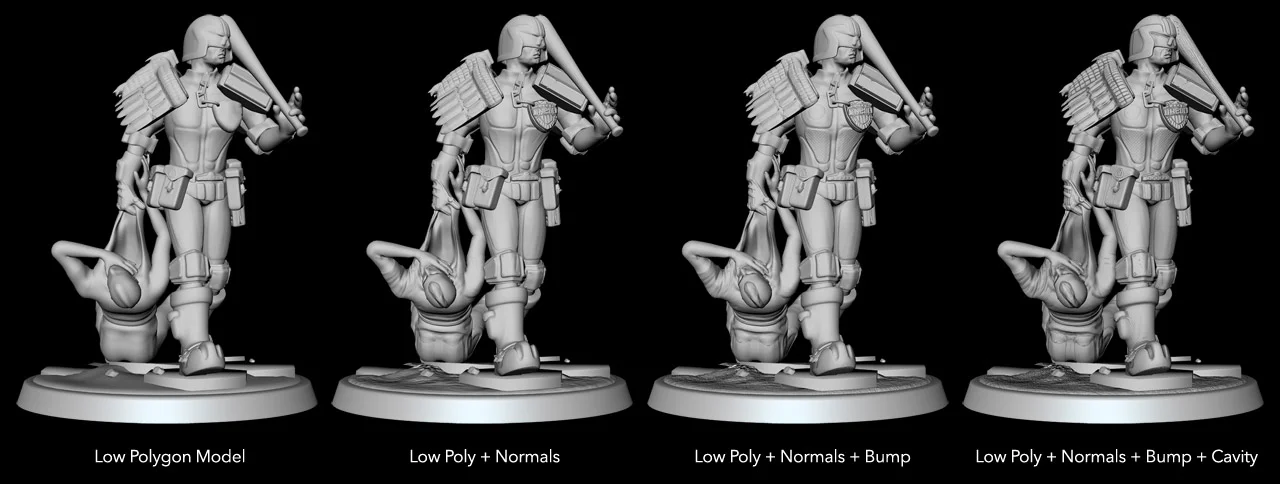

Normal maps extracted in Maya and xNormal. Bump and Cavity maps extracted in Mudbox. Left to right – maps applied to a low poly version of the model in Mudbox.

A sample of normal maps generated in Maya. Left to right – Thug, badge and belt utility bag, Judge Dredd's main body mesh.

Texturing the Low Poly Model

All paining done within Mudbox. Left to right – laying down base colors before working up detail.

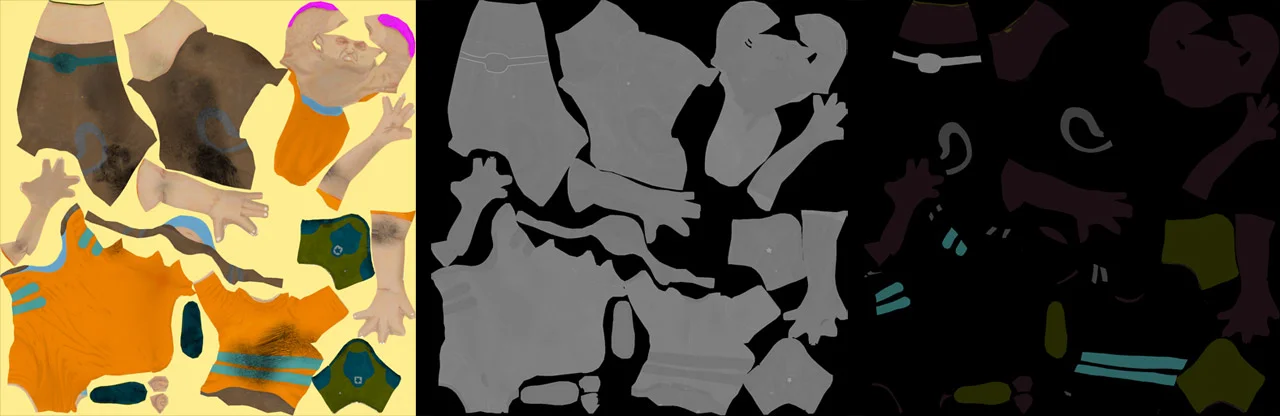

While this sculpt was transferred to a low poly mesh to ease painting, lighting, and rendering it was not intended for real-time rendering such as a game engine. I therefore allowed myself to use several texture maps with some packed more tightly than others. Organizing them logically rather than optimizing UV packing for just one or two highly efficient maps.
